1 Sheets In Stock

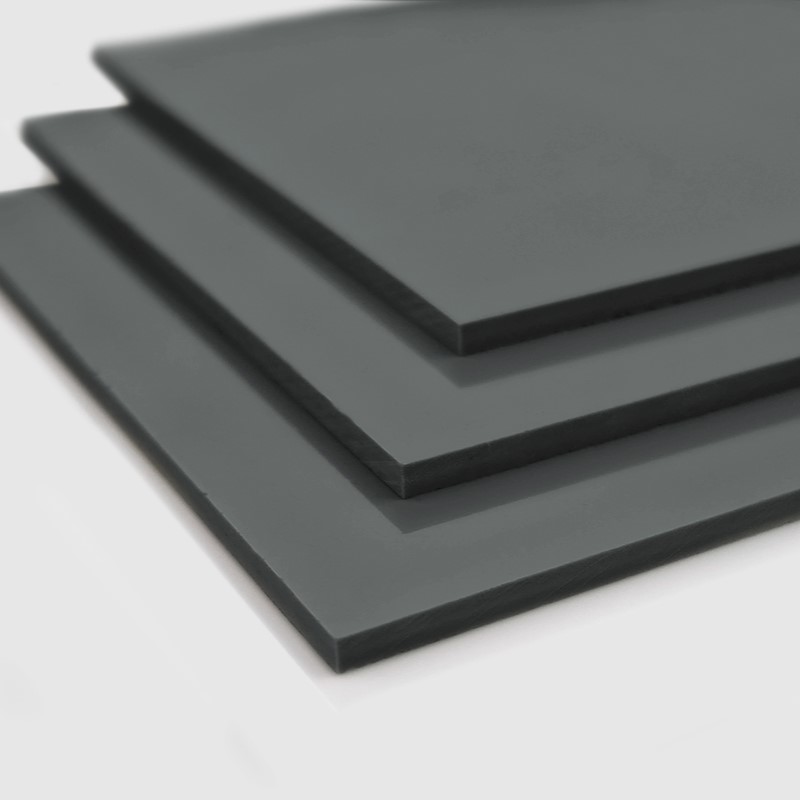

UPVC (Un-plasticized Polyvinyl Chloride) is a rigid material that can be used for thermoplastic extrusion and is supplied in gray. Un-plasticised PVC is one of the stiffest polymers at ambient temperatures and is very durable.
It is extremely versatile engineering plastic and can be used for profiled to suit your drawings.
Physical Properties
Properties (Unit) | Test Method | Result |
---|---|---|
Specific Gravity (g/cm³) | DIN EN ISO 1183 | 1.44 |
Maximum Service temp. Upper temp limit – short term (°C) | - | 60 |
Lower temp limit (°C) | - | 0 |
Tensile Strength Yield (MPa) | DIN EN ISO 527 | 58 |
Elongation at Yield (%) | DIN EN ISO 527 | 4 |
Notch Impact Strength (KJ/m²) | DIN EN ISO 179 | 4 |
Hardness Shore D | DIN EN ISO 868 | 82 |
Tensile Modulus of Elasticity (MPa) | DIN EN ISO 527 | 3300 |
Mechanical Properties
Properties | Test Method | Result |
---|---|---|
Vicat Softening Point VST/B/50 (°C) | DIN EN ISO 306 | 74 |
Coefficient of Linear Thermal Expansion 23°C - 100°C (m/(m.k)) | ISO 11359-2 | 0.8 x 10¯⁴ |
Surface Resistivity (Ω) | DIN IEC 60093 | 10¹³ |
Dielectric Strength (KV/mm) | DIN IEC 60243-1 | 39 |
Fire Performance | UL 94 | V-0 |
