7 Sheets In Stock

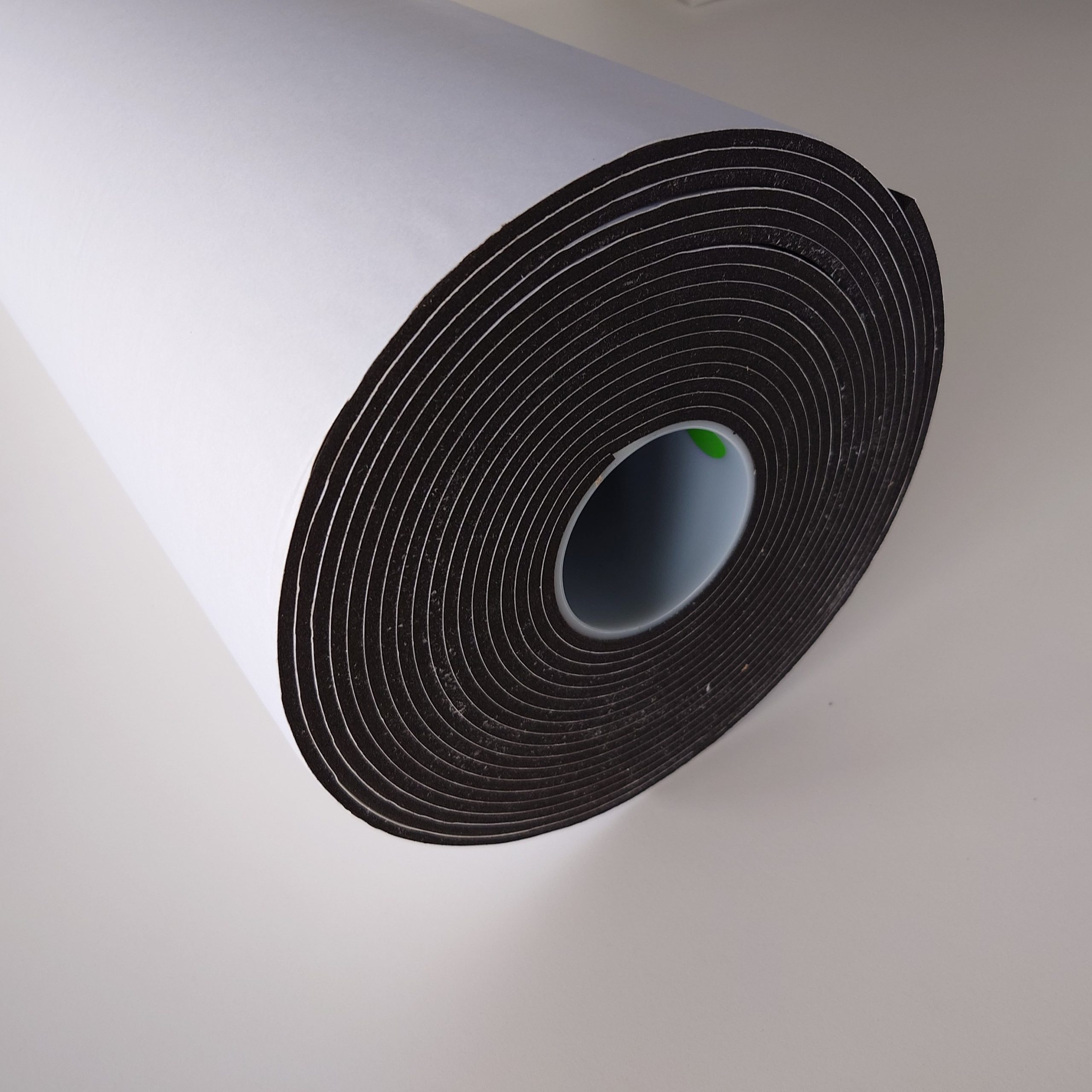

A fire retardant, high density closed cell PVC foam sealant. Coated on one side with a strong acrylic pressure sensitive adhesive. A water and weather seal for heavy duty sealing and cushioning applications.
UniSeal™ FR3000 has excellent fire-resistant properties and is available with an acrylic pressure-sensitive adhesive on one side for easy handling and application. UniSeal™ FR3000 is suitable for a wide variety of applications and industries including sealing LED lighting fixtures, EV battery packs and protecting electronics.
A1 = Adhesive on one side
Typical Physical Properties
Property (Unit) | Test Method | UniSeal FR3000 |
---|---|---|
Colour | Visual | Black |
Hardness (Shore OO) | ASTM D2240 | 50 |
Operating Temp. (°C) | - | -30 to +70 |
Fire Retardancy | In-House | Equiv. UL V0 |
Water Absorption | - | 1% Max |
Tensile Strength | - | 50 N/cm² |
Elongation | - | 75% Max |
Aging | - | Temp/UV Res |
Electrical and Mechanical Information
Property (Unit) | Test Method | UniSeal FR3000 |
---|---|---|
Density (g/cc) | - | 180 kg/m³ |
Compression by 30% | - | 6.0 N/cm² |
Deflection by 30% | - | 4.9 N/cm² |
Limitations:
