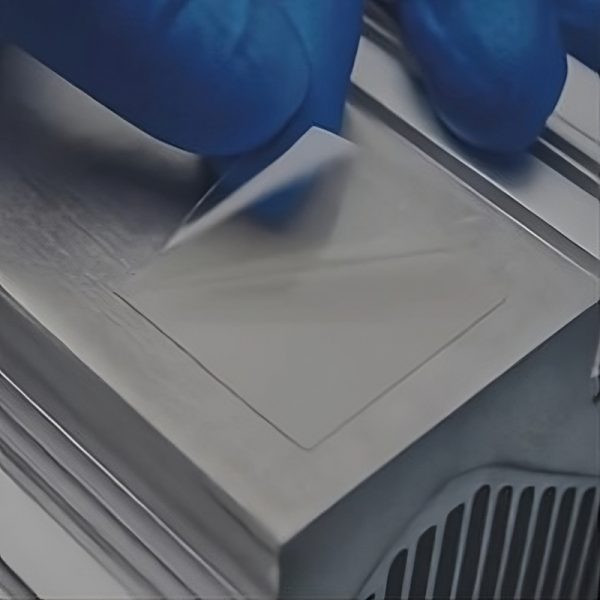

Ttape™ 1000A Thermally Conductive Adhesive Tape is a stand-alone pressure sensitive adhesive featuring one of the lowest thermal resistances (at 50µm) available on the market, designed to facilitate the transfer of thermal energy from heat sources, such as IC chips, to heat sinks. 1000A offers a high degree of substrate conformability and adhesion needing only finger pressure to achieve excellent thermal performance eliminating the need for mechanical fasteners or clamping devices during assembly.
A18494-02, A18497-02
Typical Properties
Properties | Value | Test Method |
---|---|---|
Color | White | Visual |
Thickness | 0.05mm (0.002") | ASTM D374 |
Thickness Tolerance | ±10% | IPC 1403 |
Density | 1.24 g/cc | - |
Thermal Conductivity | 0.7 W/m°K | ASTM D5470 |
Thermal Resistance | 1.3°C-cm²/W (0.2°C-in²/W) @0.69 MPa (100psi) | ASTM D5470 |
Continuous Operating Range | -40°C to 125°C | N/A |
Glass Transition Temp | -20°C | ASTM D3386 |
90° Peel Strength | 2.7 N/cm (1.6 lbs/in) | ASTM D3330 against smooth aluminum, 1hr dwell |
Lap Shear Strength | 30 psi | ASTM 3163 on untreated aluminum |
Dielectric Constant | 1.07 KHz / 1.009MHz | ASTM D150 |
Dissipation Factor | 0.009 KHz / 0.041 MHz | ASTM D150 |
Volume Resistivity | >10¹⁵ohm-cm | ASTM D257 |
Dielectric Strength | 1.18 KVac/mil 47 KVac/mm | ASTM D149 |
AC Voltage Breakdown | 2.35 KVac | ASTM D149 |
Out Gassing-TML | 0.816 % wt. | E595 |
Out Gassing - CVCM | 0.037 % wt. | E595 |
