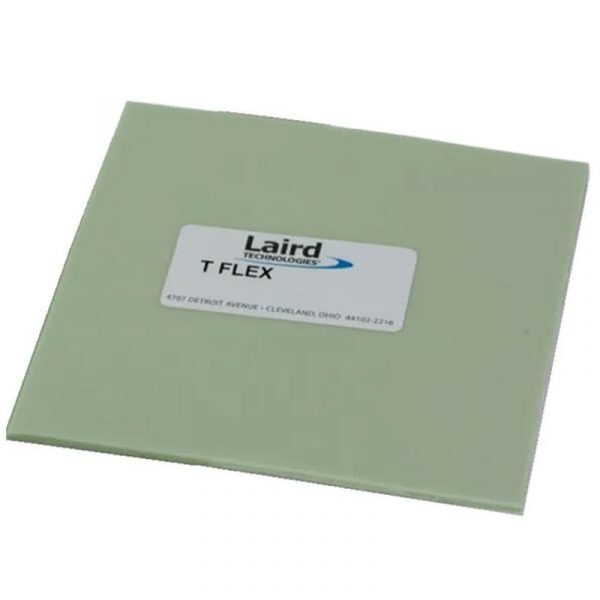

The high rate of compliancy of Tflex™ 300TG allows the material to “totally blanket” the component, enhancing thermal transfer. The material has a very low compression set enabling the pad to be reused many times. Tflex™ 300TG, in achieving its stellar compliancy, does not sacrifice thermal performance. With a thermal conductivity of 1.2 W/mK, low thermal resistance can be achieved at low pressures.
A Tgard™ silicone liner has been added to the Tflex™ 300TG to offer a guaranteed dielectric barrier. The Tgard™ is cut-through resistant and provides easier part handling in mass production.
A18053-10
TYPICAL PROPERTIES | VALUE | TEST METHOD |
---|---|---|
Construction & Composition | Filled silicone elastomer on carrier line | N/A |
Colour | Light green | Visual |
Thickness Range | 0.020 - .200 in (0.5 - 5.0 mm), 0.250 in (6.4 mm) | |
Thickness Tolerance | ±10% | |
Surface Adhesion | 1 side | |
Specific Gravity | 1.79 | ASTM D792 |
Hardness (Shore 00) | 27 | ASTM D2240 |
Thermal Conductivity | 1.2 W/mK | ASTM D5470 |
Thermal Resistance, 10 psi | 1.59 ˚C in2 /W | ASTM D5470 modified |
Coefficient of Thermal Expansion (CTE) | 600 ppm/C | IPC-TM-650 2.4.24 |
Operating Temperature Range | -40˚C to 160˚C | |
Breakdown Voltage | >10,000 VAC | ASTM D149 |
Flammability Rating | 94V0 | UL |
Outgassing, TML | 0.56% | ASTM E595 |
Outgassing, CVCM | 0.10% | ASTM E595 |
