To get an instant quote for your custom parts, please select your currency and follow steps 1 to 4.
4 Sheets In Stock
Universal Science™ T-Pad® 6500 is a non-silicone electrically isolating thermal interface material that delivers an exceptionally high level of thermal conductivity working out at 6.5W/Mk, it also maintains its temperature stability across a wider range of temperatures in addition to having a dielectric constant of 3.1 @1MHz.
T-Pad® 6500 is highly suited for rugged and extremely demanding applications as well as silicone sensitive applications. Its inherent softness removes micro air voids between contact surfaces at the interface. The cold-flow action of T-Pad® mounted to a cold wall or chassis, via a spring, metal clip or clip, delivers reliable and high thermal performance whilst also guaranteeing electrical isolation, some use cases for this material are mounting heat generating electronic devices or PCB’s to a cold wall, chassis or heatsink, thermally coupling T0220 and T0247 devices to heatsinks or nearby metal work.
A2 – Adhesive layer on both sides.
Property (unit) | Test Method | T-Pad 6500 (0.2mm) |
---|---|---|
Colour | Visual | Light blue |
Thermal Conductivity (W/mK) | ASTM D5470 | 6.5 |
Hardness (Shore A) | ASTM D2240 | 75 |
Thermal Impedance (°Ccm²/W @ 689KPa) | ASTM D5470 | 0.95 |
Operating Temp. (°C) | - | -40 to +125 |
Flame Rating | UL94 | V-0 |
Property (unit) | Test Method | T-Pad 6500 (0.2mm) |
---|---|---|
Breakdown Voltage (Volts AC) | ASTM D149 | >4000 |
Dielectric Constant (@1MHz) | ASTM D150 | 3.1 |
Volume Resistivity (Ω-cm) | ASTM D257 | 2 x 10¹¹ |
Outgassing CVCM (%) | ASTM E595 | 0.04 |
Density (g/cc) | - | 1.46 |
Available in standard thicknesses of 0.2mm |
Supplied with a pressure sensitive and thermally conductive adhesive on one side |
Standard sheet sizes of 356mm x 406mm |

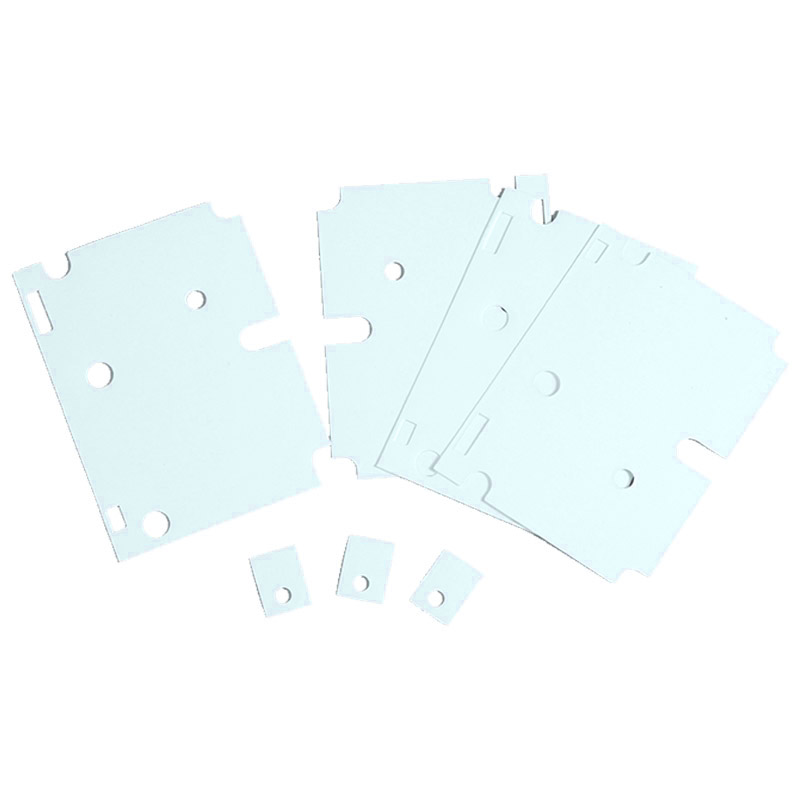

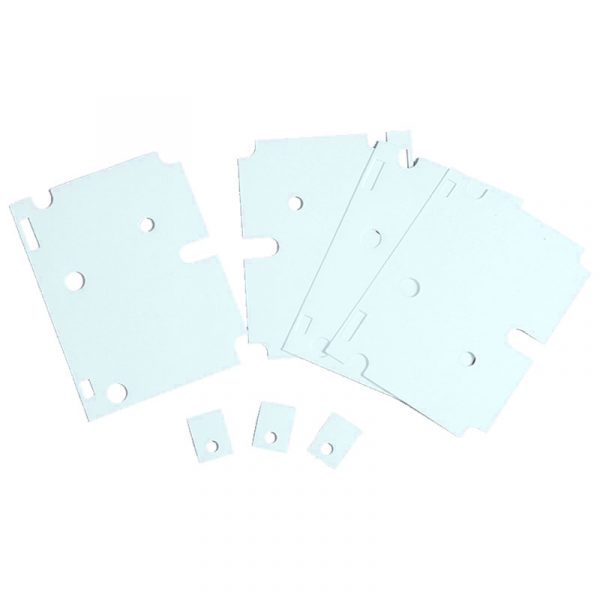

Custom die-cut parts are also available |
