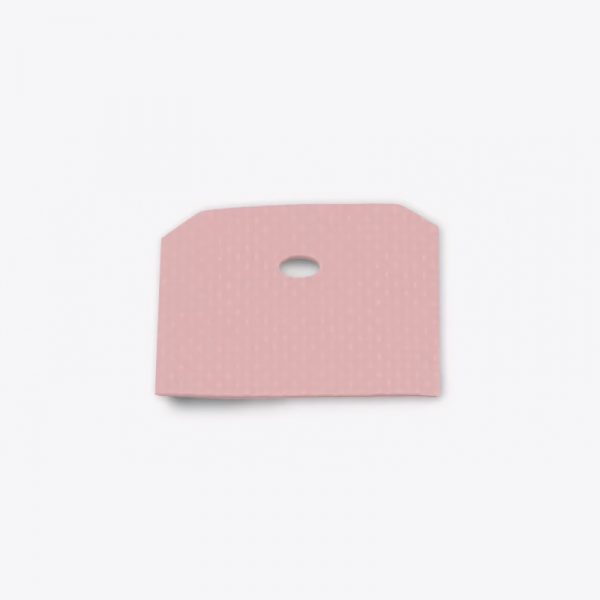

Kerafol Keratherm 86/82 is a thermal interface material with a thermal conductivity of 6.5 W/mK and a dielectric breakdown voltage of 1 kV, providing efficient heat dissipation and reliable electrical insulation. Its conformability ensures optimal contact between surfaces, reducing thermal resistance. Ideal for power electronics and automotive systems, This material is available in various thicknesses to suit different application needs.
GF = Fiberglass reinforced
A1 = Adhesive on One Side
Typical Properties
Properties | Unit | 86/82 |
---|---|---|
Colour | Red | |
Assembly | fiberglass reinforcement |
Thermal Properties
Properties | Unit | 86/82 |
---|---|---|
Thermal Resistance Rᵀᴴ | K/W | 0.09 |
Thermal Conductivity λ | W/mK | 6.5 |
Electrical Properties
Properties | Unit | 86/82 |
---|---|---|
Dielectric Breakdown Voltage U | kV | 1.0 |
Volume Resistivity | Ωm | 2.0 x 10¹⁴ |
Dielectric Loss Factor tan δ | 1.4 x 10¯³ | |
Dielectric Constant | 2.4 |
Mechanical Properties
Properties | Unit | 86/82 |
---|---|---|
Hardness | Shore A | 60 - 70 |
Tensile Strength | N/mm² | 13.0 |
Elongation | % | 2 |
Physical Properties
Properties | Unit | 86/82 |
---|---|---|
Application Temperature | °C | -40 to +200 |
Density | g/cm³ | 1.23 |
Flame Rating | UL-94 | V-0 |
Possible Thickness | mm | 0.25 - 0.3 |
