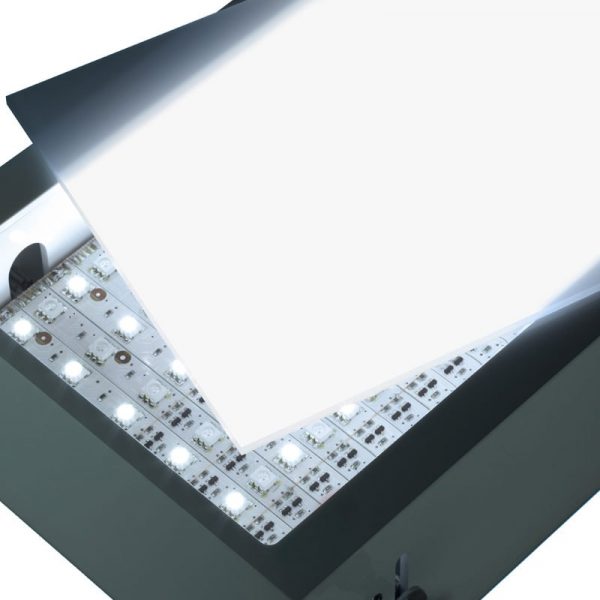

Solid Makrolon® DX sheets are polished polycarbonate diffuser sheets. Makrolon® DX is developed for applications based on LED light sources, which do not emit UV light. It offers a combination of high light transmission and light diffusion as well as an extreme impact strength which exceeds the physical properties of other thermoplastics. Makrolon® sheets resist tempe-ratures of -100 to +120 °C. Makrolon® DX cool is a diffuser sheet with a cool and fresh color appearance, even when the LEDs are in off mode
Test Conditions | Typical Values(1) | Unit | Test Method | |
---|---|---|---|---|
PHYSICAL | ||||
Density | 1200 | kg/m3 | ISO 1183-1 | |
Water absorption saturation | water at 23°C | 0.3 | % | ISO 62 |
Water absorption equilibrium | 23°C, 50 % RH | 0.12 | % | ISO 62 |
Refractive Index | Procedure A | 1,586 | - | ISO 489 |
MECHANICAL | ||||
Tensile Modulus | 1 mm/min | 2300 | MPa | ISO 527-1,-2 |
Yield Stress | 50 mm/min | >60 | MPa | ISO 527-1,-2 |
Yield Strain | 50 mm/min | 6 | % | ISO 527-1,-2 |
Nominal strain at break | 50 mm/min | >50 | % | ISO 527-1,-2 |
Flexural modulus | 2 mm/min | 2300 | MPa | ISO 178 |
Flexural strength | 2 mm/min | 90 | MPa | ISO 178 |
Charpy impact strength | 23°C, unnotched | non-break | kJ/m2 | ISO 179-1eU |
Charpy impact strength | 23°C, 3 mm, notched | 70P | kJ/m2 | ISO 179-1eU |
Izod impact strength | 23°C, 3.2 mm, notched | 80P | kJ/m2 | ISO 180-A |
ELECTRICAL | ||||
Electrical strength | 1 mm | 34 | kV/mm | IEC 60243-1 |
Volume resistivity | 1E14 | Ohm.m | IEC 60093 | |
Surface resistivity | 1E16 | Ohm | IEC 60093 | |
Relative permittivity | 100 Hz | 3.1 | - | IEC 60250 |
Relative permittivity | 1 MHz | 3 | - | IEC 60250 |
Dissipation factor | 100 Hz | 5 10-4 | - | IEC 60250 |
Dissipation factor | 1 MHz | 90 10-4 | - | IEC 60250 |
