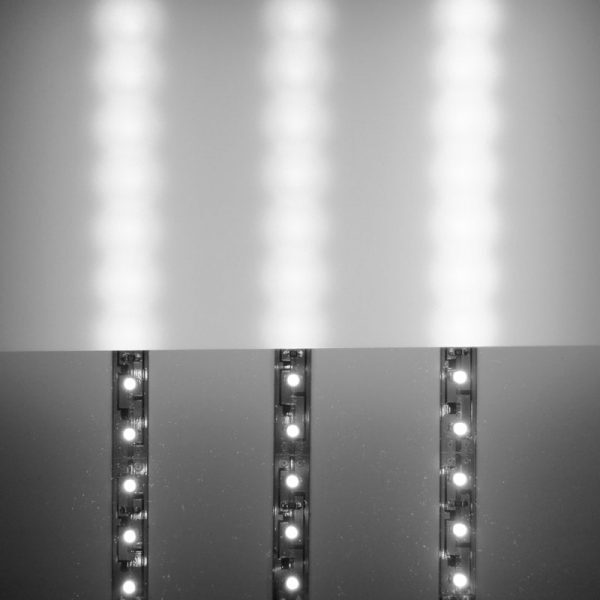

C-Series diffusers efficiently hide lamps and provide smooth illumination in both LED and fluorescent applications. They provide excellent depixellation, angle control, color mixing, and color uniformity. An applications engineer will be happy to help select the correct product for your application.
*For More Specifications of the C-Series Diffusers please see data sheet in the Downloads
Distance to achieve complete LED hiding (Distance between lamps : Working distance to diffuser) | Typical angle in a 90° downlight (FWHM: full width half max) (microstructures facing away from lamps) | Typical angle in a 90° downlight (FWHM: full width half max) (microstructures facing toward lamps - atypical) | ASTM D1003 Transmission2 | Efficiency in typical LED luminaire3 | |
---|---|---|---|---|---|
C - HE80 | 1 : 1.5 | 70° | 115° | > 96% | 88 - 92 % |
• Choose the highest-efficiency diffuser that meets your lamp-hiding goals
• C-Series diffusers are directional and are generally used with the microstructures facing away from the LEDs or lamps when LED hiding is desired; please try both orientations
• Bright View applications engineers can assist with product choices and help your design achieve peak performance
