Bergquist Sil Pad TSP 1800ST – 0.203mm | Henkel
Known as BERGQUIST SIL-PAD 1500ST
£0.00
To get an instant quote for your custom parts, please select your currency and follow steps 1 to 4.
- Superior Thermal Performance
- Easy, Adhesive-Free Application
- Reliable & Durable
52 Sheets In Stock
Description
The BERGQUIST® SIL PAD® TSP 1800ST is a high-performance thermal interface material (TIM) designed for efficient heat dissipation and electrical insulation in demanding electronic applications. This silicone-based, fiberglass-reinforced pad delivers superior thermal conductivity of 1.8 W/m·K, ensuring optimal heat transfer between power components and heat sinks. Its naturally tacky surfaces allow for easy placement and secure positioning without additional adhesives, streamlining the assembly process. The low compression force and high conformability make it ideal for applications where minimizing mechanical stress on components is crucial.

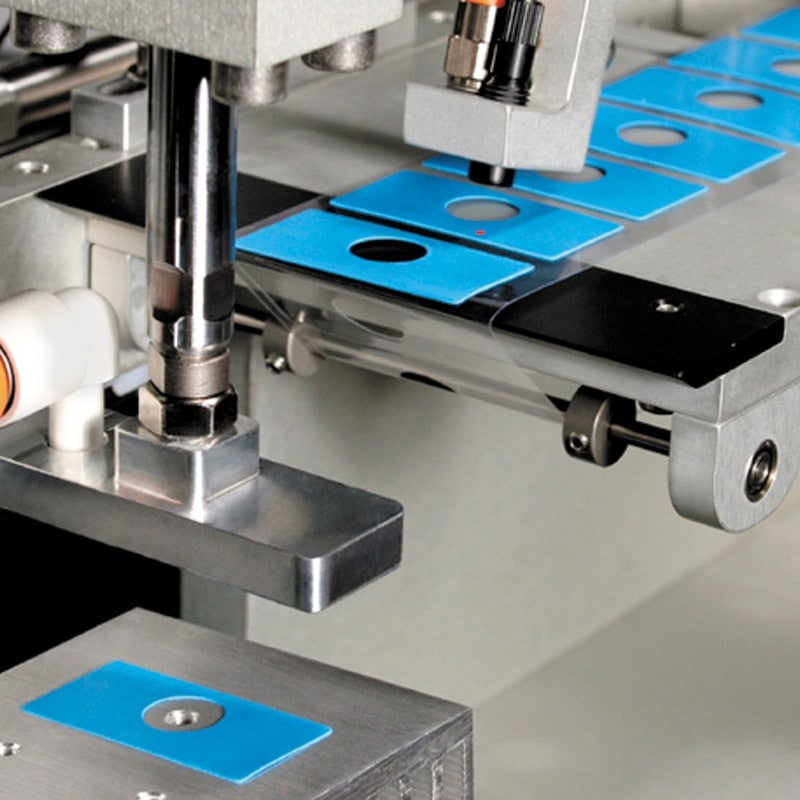

With exceptional durability and cut-through resistance, the SIL PAD® TSP 1800ST is a reliable solution for power electronics, motor controls, automotive modules, and industrial equipment requiring efficient thermal management. Available in sheet and roll form, it supports automated placement processes, making it a cost-effective choice for high-volume manufacturing. This high-quality thermal interface pad ensures long-term performance, safety, and reliability, meeting stringent industry standards, including a UL 94 V-0 flammability rating for enhanced fire safety.
Benefits
- Superior Thermal Performance
- Easy, Adhesive-Free Application
- Reliable & Durable
Features
High Thermal Conductivity (1.8 W/m·K)
- Delivers superior heat dissipation for high-power applications.
Low Thermal Impedance (0.23°C-in²/W at 50 psi)
- Enhances thermal performance by minimizing resistance to heat flow.
Naturally Tacky Surfaces
- Ensures strong adhesion without additional adhesives, simplifying assembly.
Low Compression Force
- Provides effective heat transfer with minimal pressure, reducing stress on components.
Fiberglass Reinforcement
- Enhances mechanical strength and durability while preventing cut-through damage.
UL 94 V-0 Flammability Rating
- Meets strict fire safety regulations for industrial and automotive applications.
Recommended Uses
- Power Electronics & Power Supplies: Ensures reliable thermal management for converters, inverters, and transformers.
- Automotive Electronics & EV Modules: Optimized for control units, battery management systems (BMS), and ADAS components.
- Motor Controls & Industrial Equipment: Improves heat dissipation for motor drivers, robotics, and automation systems.
- LED Lighting & Displays: Helps extend the lifespan of high-power LEDs by efficiently managing heat.
Physical Properties
| Shore Hardness, ASTM D2240 Shore 00 | 75 |
| Breaking Strength, ASTM D1458, KN/m | 0.34 |
| Elongation , 45º to warp and fill, ASTM D412,% | 22 |
| Tensile Strength, ASTM D412, MPa | 1.6 |
| Flammability Rating, UL 94 | V-0 |
Electrical Properties
| Dielectric Breakdown Voltage , ASTM D149, Vac | 3,000 |
| Dielectric Constant, ASTM D150 @ 1,000 Hz | 6.1 |
| Volume Resistivity, ASTM D257, ohm-meter | 1×10¹¹ |
Thermal Properties
| TO-220 Thermal Performance, ºC/W | |
|---|---|
| TO-220 Thermal Performance, ºC/W @ 10 psi | 1.54 |
| @ 25 ps | 1.52 |
| @ 50 psi | 1.51 |
| @ 100 psi | 1.49 |
| @ 200 psi | 1.46 |
| Thermal Impedance, ASTM D5470, ºC-in2 /W | |
|---|---|
| @ 10 psi | 0.37 |
| @ 25 psi | 0.28 |
| @ 50 psi | 0.23 |
| @ 100 psi | 0.21 |
| @ 200 psi | 0.2 |
