2 Sheets In Stock

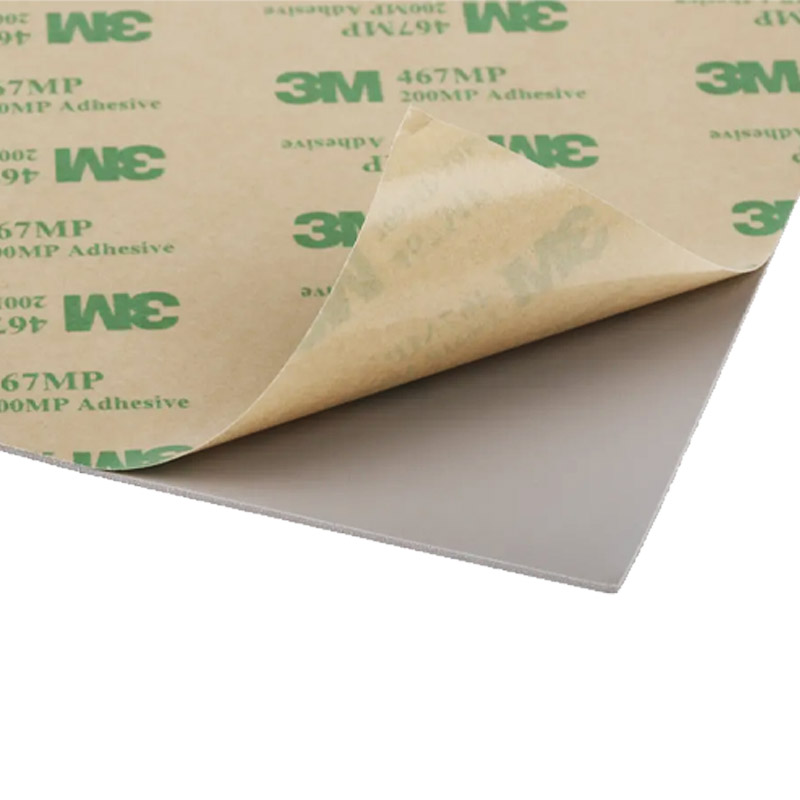

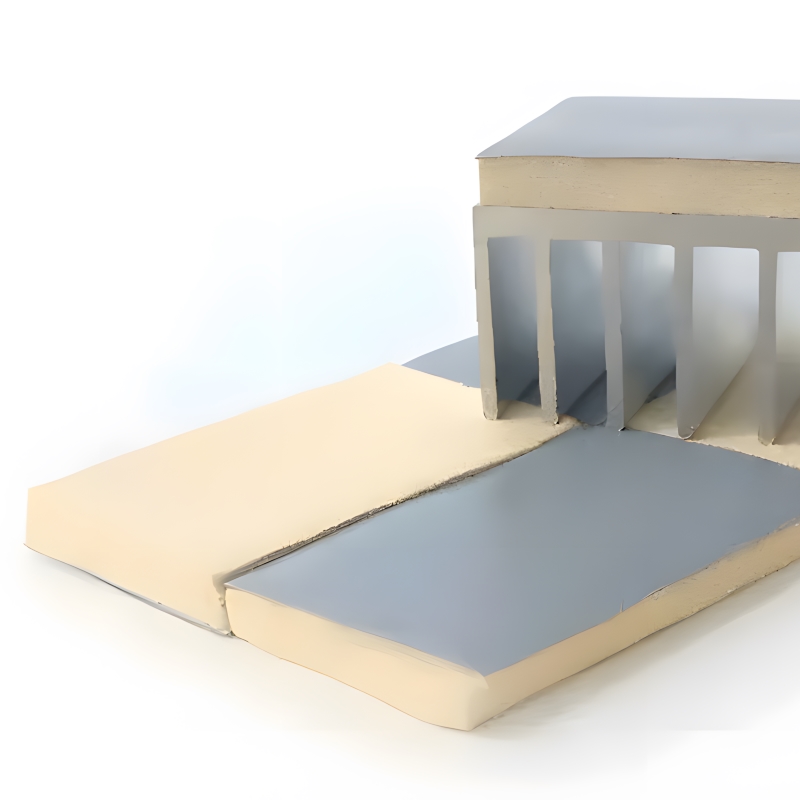

3M range of mid-performance thermal Pads which due to their flexible design allows them to fill the air gap between uneven surfaces. Thermal gap pads provide a thermal interface between heatsinks (devices or substances for absorbing unwanted or excess heat) and electronic devices. They’re particularly useful where air gaps, rough surface textures or uneven surface topography prevent the use of traditional grease or paste
General Specifications
Material | Silicone |
Self-Adhesive | Yes |
Colour | Grey |
Applications | Flat panel displays; LED (light emitting diode) displays; Engine control units; Computer hard drives; Wireless communication hardware |
Flame Rating | V0 UL94 |
Shelf Life | 24months |
Electrical Specifications
Dielectric Strength | 6kV/mm |
Dielectric Constant at 1kHz | 5 |
Volume Resistivity | 10¹²ohm.cm |
Insulation Strength | >7kV/mm |
Mechanical Specifications
Dimensions | 150x150mm |
Thermal Conductivity | 1.6W/(m.K) |
Hardness | Shore A 15 |
Thermal Impedance | <0.28°C-in² /W |
Specific Gravity | 2.38g/cm³ |
Weight Loss | <1% |
Elongation | 300% |
Tensile Strength | 12Kgf/cm² |
Density | 3.3g/cm³ |
Deflection At 10 psi | 3% |
Young’s Modulus | 24N/cm² |
Compression Ratio at 1mm, 40psi | 40% |
Thermal Resistance | 0.8W/m.K |
Coefficient Of Thermal Expansion | 250ppm/K |
Dissipation Factor At 1000kHz | 0.013 |
Operating Environment Specifications
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 200°C |
Approvals
Compliance/Certifications | CE / UR / cUR |
