Bespoke Shape Cutting for Pads and Gaskets

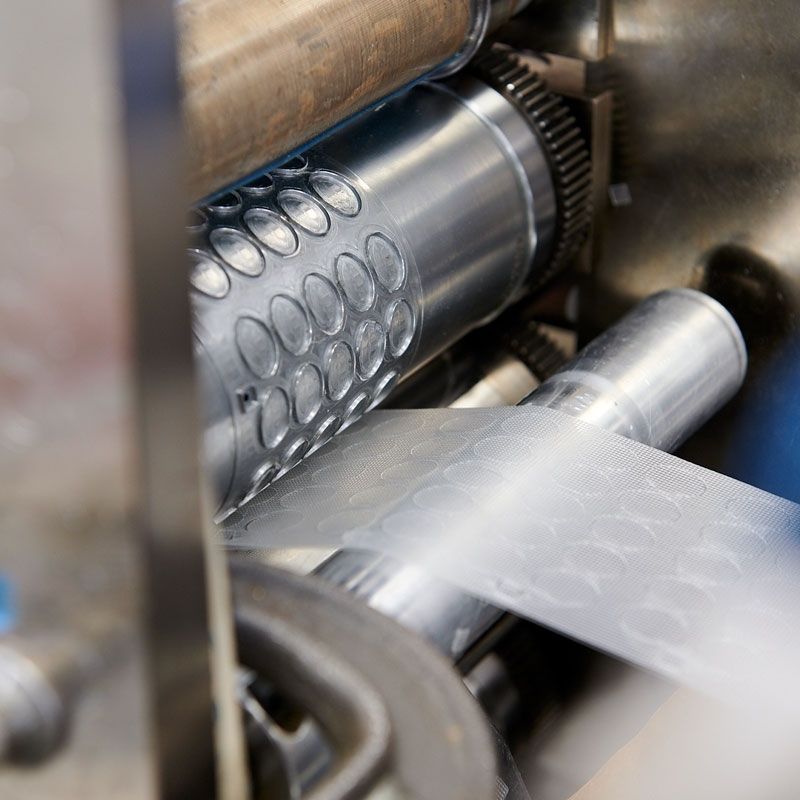

Rotary Die Cutting is a method of cutting bespoke shapes of pad or gaskets from a roll of flexible adhesive coated materials.
The material is unrolled and passes through two rollers and one roller has the imprint of the part you are looking to convert magnetically held in place.
With the Rotary Die Cutting process, a primary roller has a raised blade that impinges on a secondary roller with high accuracy, thereby cutting the part shape required.
Fast and Accurate Converting
Once your shape has been through the rotary die cutter, the remaining scrap material is removed and just your parts are left and re-rolled.
A counter set on the side of the rotary die cutter counts the parts as the roll is cut. It is a very fast and accurate method of converting.
This manufacturing method can be used to convert many styles of material such as EMI, Thermal pads, Adhesive tapes, and films.
Rotary die cutting enables us to cut single-sided and double-sided adhesive materials.

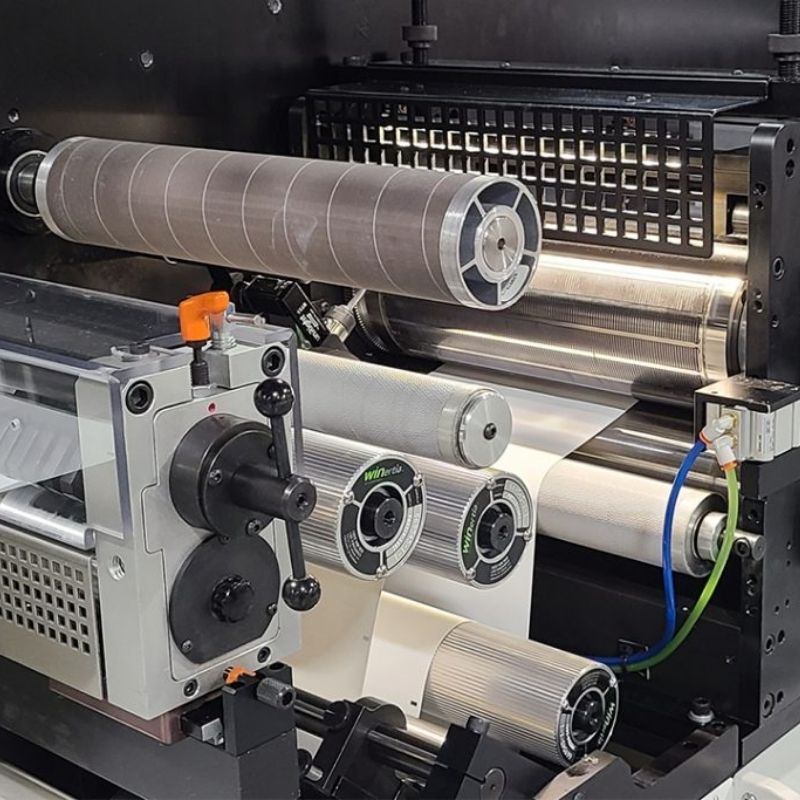

Rotary Die Cutting Process
A Rotary Die Cutting tool is a tool that produces the imprint of the part but applied to a cylinder. The cylinder with its imprint tool and another drum set to a specific distance. The material to be cut is then passed between the 2 roller cylinders.
The parts are cut to size and the scrap removed. The parts are re-rolled ready for delivery. Parts required to be supplied on a roll require a tool to be manufactured and therefore a 24hr service for this technique is not possible.
Customers requesting parts on a roll should in the first instance make contact by email or make the request in the notes when placing an order.
We will then review this and advise if it is the best method of production for your order and if the material suits this method. (for instance, we cannot roll cut sheets of material; they have to be rolls of material to begin with).
Reserved for High Demand Rotary Die Cutting
Materials direct has the ability to manufacture 100,000’s of parts per hour and so this technique is usually reserved for the higher volume requirements. A rotary die cutting tool is required to be manufactured and therefore a 24hr service for this technique is not possible.
No tooling charge for Custom Cut Materials
In keeping with our commitment of delivering No tooling charge, we only offer this service when our customer’s order is of a high volume to suit our manufacturing process. This ensures that we get full use of this tool over time.
Our Latest Products
-

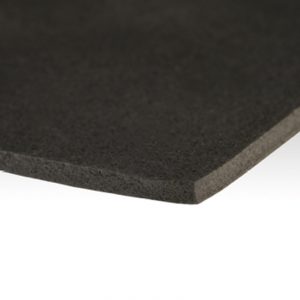

Select optionsNorseal® PF47-250 – 3mm | Saint Gobain
£0.00 SKU: 93251- High resiliency performance over complete compression range
- Soft foam that provides consistent deflection force over wide compression
- Ideal for Intricate area gasketing
-
Select options
SOFT-SHIELD® 4850 – A1 – 1.5mm | Parker Chomerics
£0.00 SKU: 93246- Low closure force
- Low compression set <15%
- Non-nickel bearing material
- Adhesive on One Side
-
Select options
Kapton® 200HN – A0 – 0.0508mm | DuPont™
£0.00 SKU: 93245- All purpose – can be laminated, diecut, slit, formed, or adhesive-coated.
- It does not melt. It can be used at both high and low temperature extremes.
- Kapton® polyimide films can be used in a variety of electrical and electronic uses.
Custom Cut Materials
Materials Direct is approaching this market in a way that is easy to order and specify in Electronics across all industries. Customers who need a certain brand of material that does not appear on the site can apply for us to add this stock to the site’s portfolio based on potential usage.
No Tooling Charge
There is NEVER a tooling charge for manufacturing
Fast Manufacturing
Parts made & shipped worldwide in as little as 24 hours
Technical Support
Technical expertise available from our specialists
100% Payment Secure
We ensure secure payment with a wide array of options
Instant Quotes – Purchasing Made Easy
The main problem for design engineers and purchasing has been until now the quick supply of parts as often the custom pad is one of the last items to be specified in the design of an Electronic assembly.
Materials Direct not only provides an instant quote but gives the buyer the offer of uploading their custom design for it to be manufactured within 24hours if the material is in stock.
1
Get an online quote
for the part / gasket
2
Upload your design
and approve
3
Place and pay
for your order
4
Parts dispatched to you
in as little as 24 hours.
Cutting Double-Sided Adhesives
When cutting a double-sided adhesive we cut through the top liner and the material but leave the part on the bottom liner.
The customer then takes the part with its liner attached off of the roll and applies it to the assembly and the last stage is to remove the top liner exposing the top layer of adhesive.
Advantages of supplying parts on a roll.
The speed at which we can produce parts makes Rotary Die Cutting the most suitable method for us if the business demands it.
The part sizes we manufacture in this way are a maximum of 290mm x 200mm (max roll width 300mm) but the majority of parts tend to be small but high volume so we would step and repeat the design across the roll.
The advantage of supplying parts on a roll is very efficient as parts are peeled directly from the roll like a sticky label.
The parts are also very clean as they are not exposed to the environment until they are unrolled.
